Marca: Interline

Tienda: CiudadWireless

Disponibilidad: En almacén, envío inmediato.

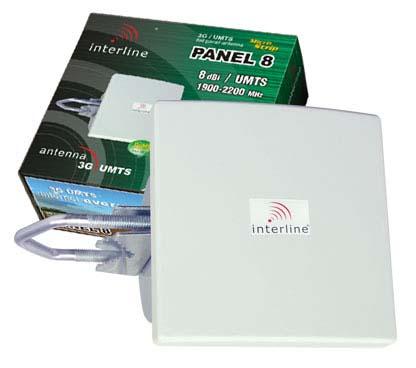

Pagina nueva 1 INT-PAN-08/3G-HV directional flat panel antenna Antenna Overview PANEL is a directional, subscriber antenna. It can be used in indoor and outdoor applications. Antenna's radiator is a precise designed printed circuit board element. Module design assures perfect fitting what guarantee reliable performance in all weather conditions and constant high production quality. Key Features - modular design assures constant mechanical and electrical parameters - lacquered patch martix guarantee reliable performance in all weather conditions - elegance and discreet super slim ABS radome - tilting option enables optimal aiming - works in horizontal or vertical polarization Electrical frequency 1900-2200MHz impedance 50Ω VSWR polarization horizontal or vertical gain 8dBi beamwidth (-3dB): horizontal 60° beamwidth (-3dB): vertical 60° front to back ratio > 20dBi cross polarization > 8dBi Mechanical dimensions 115x115x18mm weight 0.2kg connector RP-SMA (Pin Male) wind load @ 170km/h 17.5 N
