Marca: Weidmuller

Tienda: Farnell

Disponibilidad: En almacén, envío inmediato.

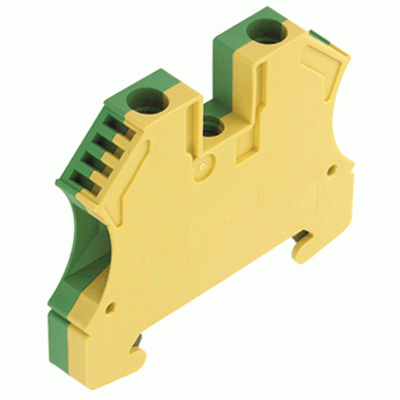

terminal block, earth, din, 2way; connector type:terminal block, din rail; series:w; connector mounting:din rail; pitch spacing:5mm; no. of contacts:2; wire size (awg):26awg to 12awg, 22awg to 12awg; svhc:no svhc (18-jun-2012); approval bodies:csa / demko / lcie / lloyds / nemko / semko / seti / sev / ul; colour:green / yellow; connector mounting orientation:din rail; external length / height:47mm; external width:60mm; flexible wire area size max:4mm˛; mounting type:din rail; no. of poles:2; no. of positions:1; no. of ways:2; terminal type:screw; voltage rating v ac:800v; wire area size max:4mm˛; wire area size min:0.5mm˛; wire area size solid max:4mm˛; wire area size stranded max:4mm˛; wire size:12awg; wire size awg max:12awg; wire size awg min:30awg; wire size range (awg):30-12
